Gansu Hongfeng Machinery Co., Ltd., located in Pingliang City, Gansu Province, is a high-tech enterprise restructured and reorganized from the large-scale second-class military enterprise, the state-owned 920 Factory. It specializes in the research, development, and manufacturing of energy-saving products such as drain valves and condensate water recovery devices.
In the course of specializing in the production of energy-saving products and energy-saving devices such as traps and condensate recovery devices, "Hongfeng" takes the revitalization of the national equipment manufacturing industry and the creation of a national brand of traps as its own responsibility, closely tracks the development trends of science and technology and production trends, adheres to the technological innovation strategy of "no one has me, no one has me, no one has me, and I am new", and has realized the transformation from technology introduction, reference and absorption to independent innovation and independent development.
Based on the strict requirements of the steam system for the reliability, stability, durability and safety of pump and valve equipment, the company has established a complete set of quality assurance and control systems including procurement management, production control, performance verification, quality inspection, after-sales service, etc., and wholeheartedly escorts high-quality products.
We always respect and love our customers, and regard them as friends and siblings, and dedicate perfect services with a grateful heart, because customers are the pillar and source of our career success.
Pressure rating: 150Lb/300Lb
Working medium: steam, condensate
Body Material: A105
Branch type: seamless steel pipe / prefabricated insulated pipe / no branch pipe
Number of branches: 4 /6 /8 /10 /12 /14
Allowable temperature/pressure: 425°C/2.8MPa
Connection: main pipe DN40 flange, socket connection, branch pipe DN15/DN20 thread, socket welding, flange, ferrule.
Modular components including tube bundle valves, integrated multi?channel valves, and universal connection steam traps are assembled into a compact, standardized system: the HSJ Series Integrated Condensate Collection Bundle.
1.Reduces on?site assembly time.
2.Lowers engineering costs and shortens procurement and design cycles.
3.Offers flexible and convenient design and installation.
4.Ensures long service life.
5.Facilitates easy replacement and maintenance.
6.Comes standard with WS Series universal connection thermodynamic (disc?type) forged steel traps; other trap types (such as WTB Series bimetallic traps or WES Series inverted bucket traps) are available upon request.
7.Custom tube bundle layouts can be designed to meet specific on?site piping requirements.
Application: Suitable for centralized condensate collection and transfer in industrial steam heating systems across petroleum, chemical, metallurgical, textile, papermaking, printing and dyeing, pharmaceutical, power generation, and related industries.

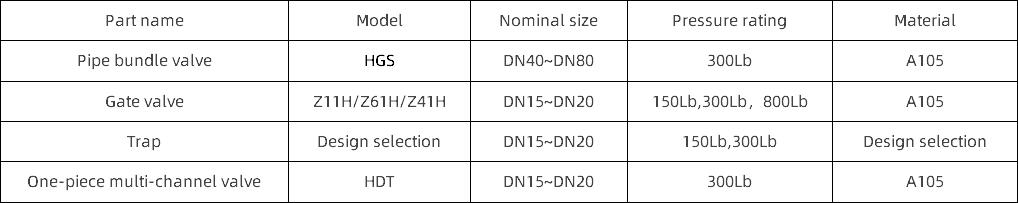

Components & Materials:

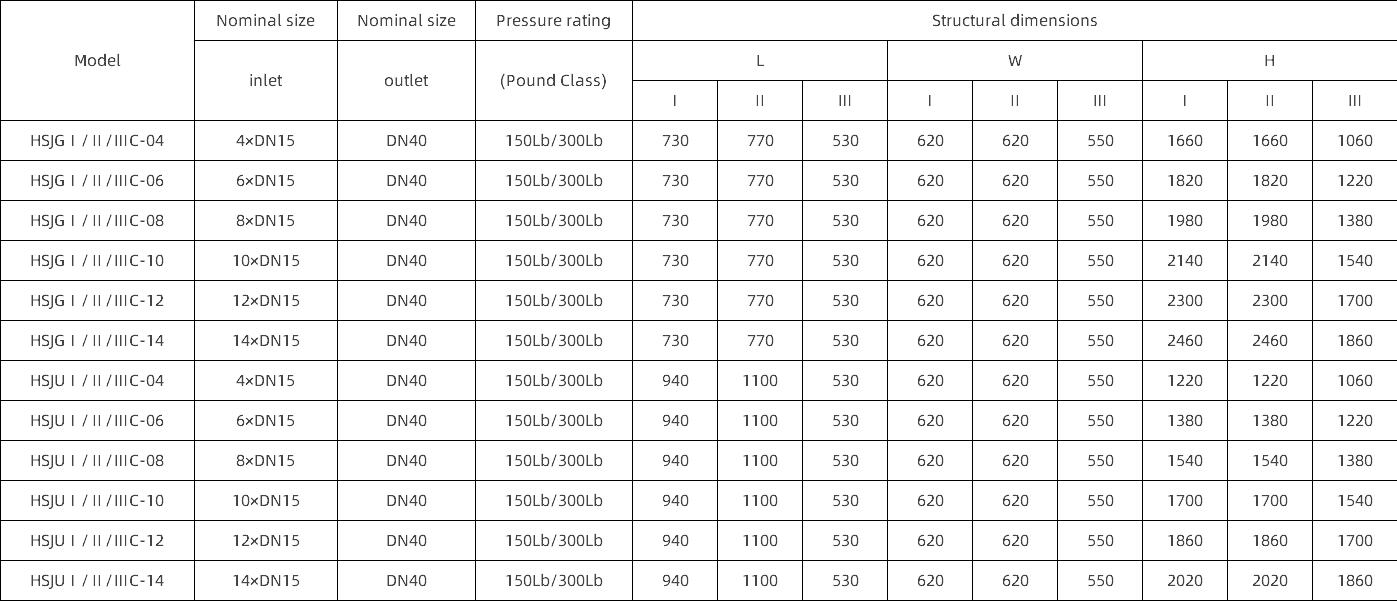

Technical Data Sheet:
